An Audio Analyzer is a test and measurement instrument used to objectively quantify the audio performance of electronic and electro-acoustical devices. Audio quality metrics cover a wide variety of parameters, including level, gain, noise, harmonic and intermodulation distortion, frequency response, relative phase of signals, interchannel crosstalk, and more. In addition, many manufacturers have requirements for behavior and connectivity of audio devices that require specific tests and confirmations.
Audio analysis requires that the device under test receive a stimulus signal of known characteristics, with which the output signal (response) may be compared by the analyzer in order to determine differences expressed in the specific measurements. This signal may be generated or controlled by the analyzer itself or may come from another source (e.g., a recording) as long as characteristics relative to the desired measurement are defined.
As test and measurement equipment, audio analyzers are required to provide performance well beyond that of the typical devices under test (DUTs). High quality audio analyzers must demonstrate vanishingly low levels of noise, distortion and interference in order to be deemed trustworthy by engineers and designers. For example, while a commercial CD player can achieve a total harmonic distortion plus noise (THD+N) ratio of approximately -98 dB at 1 kHz, a high quality audio analyzer may exhibit THD+N as low as -121 dB (typical performance of the Audio Precision APx555).
Audio Analyzers find use in both development and production of products. A design engineer will find it very useful when understanding and refining product performance, while a production engineer will wish to perform tests to rapidly confirm that units meet specifications. Very often audio analyzers are optimized for one of these two cases.

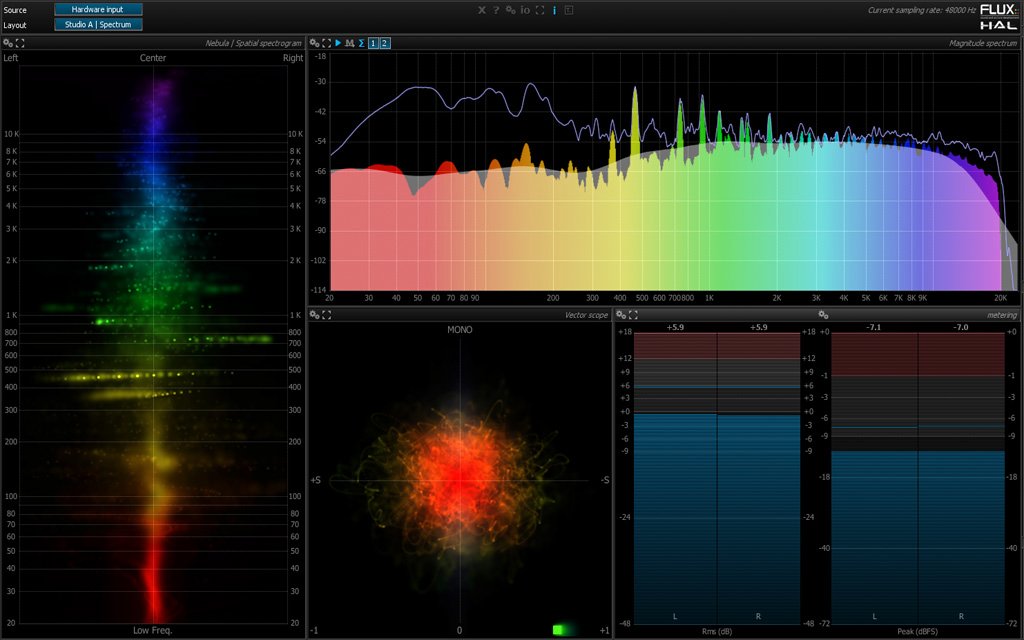

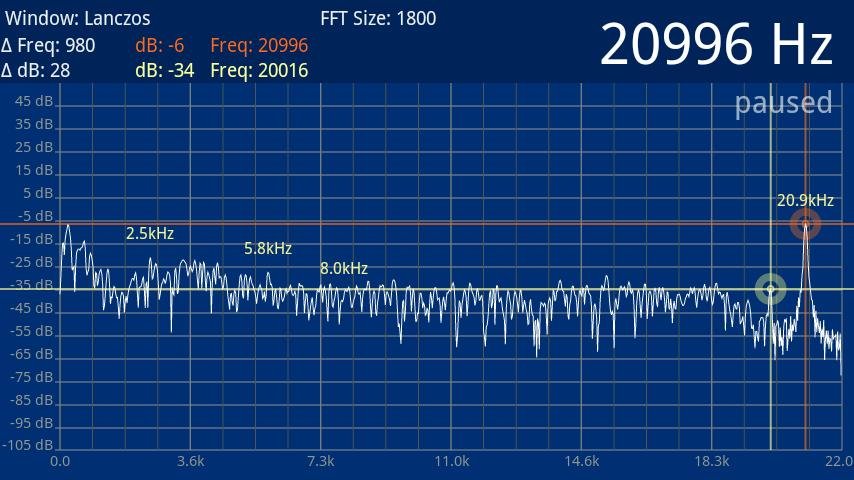

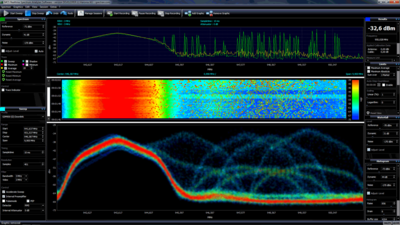

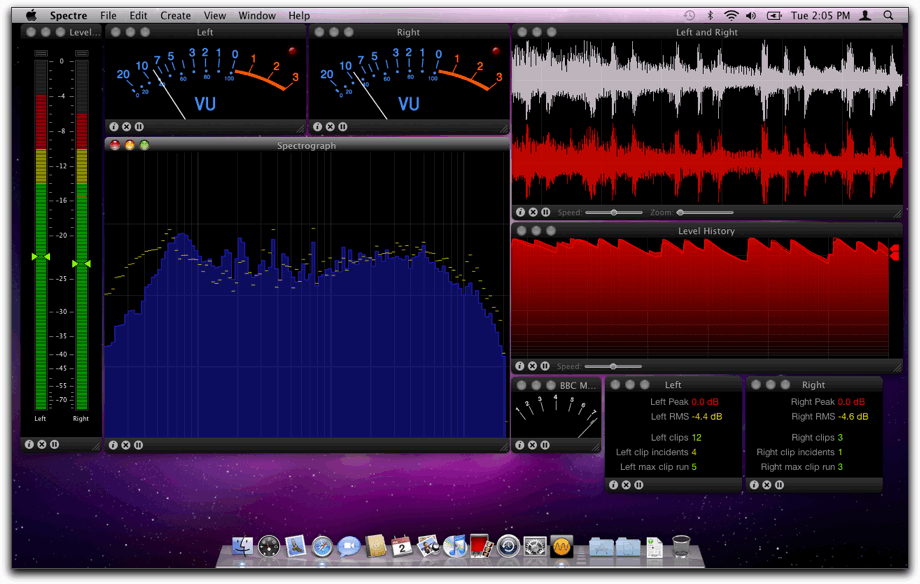

We have several software tools designed for specific needs to be addressed in waves harmonics.
